Data Flow Diagram Examples — 40+ Free DFDs (Levels 0, 1, 2) for BSIT Capstones (2026)

itsourcecode.com hosts 40+ free Data Flow Diagram (DFD) examples for BSIT capstone projects (2026) — complete Level 0 (context), Level 1 (high-level processes), and Level 2 (decomposed sub-processes) DFDs for the most common capstone domains. Each is downloadable and capstone-ready for Chapter 3 documentation. Browse by system below.

What is a Data Flow Diagram (DFD)?

A Data Flow Diagram visualizes how data moves through a system — what processes transform it, where it is stored, and which external entities provide or consume it. DFDs use four symbols: External Entity (rectangle — user, supplier, admin), Process (circle or rounded rectangle — what the system does), Data Store (open rectangle — database or file), and Data Flow (arrow — direction of data movement). DFDs are required in Chapter 3 of every BSIT capstone documentation in the Philippines and most universities globally.

The 3 DFD levels you need for capstone

Level 0 (Context Diagram) — one process bubble representing the entire system, with all external entities (users, admins, suppliers) and their high-level data flows. Shows scope.
Level 1 — decomposes the Level 0 process into 5-8 major sub-processes (Login, Manage Inventory, Generate Report, Process Order, etc.) with data stores between them.
Level 2 — further decomposes each Level 1 process. Only do this for the 2-3 most complex sub-processes. Going deeper than Level 2 is over-scope for capstone.

Featured DFD examples by system domain

🎓 School, Student & Library

🏥 Hospital, Pharmacy & Healthcare

🍽️ Hotel, Restaurant & Hospitality

🛒 E-commerce, Shop & Inventory

🏦 ATM, Banking & Finance

🚗 Transport, Travel & Reservation

🤖 AI / Recognition & Authentication

🛡️ Government & Civic

Barangay Information System DFD (Levels 0,1,2)

About this DFD collection

Curated since 2015 by PIES Information Technology Solutions, Binalbagan, Negros Occidental, Philippines. Each DFD has been used in defended BSIT capstones. Used by 12,000+ BSIT students monthly. Pair each DFD with the matching ER Diagram and Use Case Diagram for a complete Chapter 3 documentation set.

Related UML diagram collections

UML Diagrams Library — parent collection, 300+ diagrams
ER Diagrams — 35+ ERDs paired with these DFDs
Use Case Diagrams — 40+ Use Case diagrams
Class Diagrams — 30+ Class diagrams
Activity Diagrams — 30+ Activity diagrams
Sequence Diagrams — 35+ Sequence diagrams
Components Diagrams
Deployment Diagrams
Final Year Projects

DFD for Payroll Management System 2026: Levels 0, 1, 2 [Free PDF + Source]

May 11, 2026April 7, 2021 by Nym

A data flow diagram (DFD) shows how data moves through the payroll system with the help of inputs and outputs. The following symbols show the presence of the payroll management …

DFD for Online Shopping System – Data Flow Diagram

November 16, 2024April 6, 2021 by Nym

The DFD (Data Flow Diagram) for Online Shopping System describes the overall “flow” of data on the project. It is used to document the transformation of data (input-output) for project …

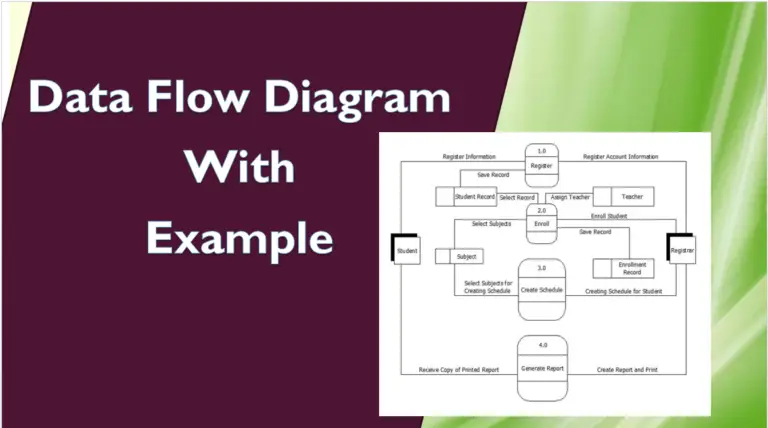

Data Flow Diagram Examples In Software Engineering

November 16, 2024December 30, 2019 by itsourcecode

data flow diagram level 0 1 2 examplesdata flow diagram level 0 1 2 examples

Data Flow Diagram Examples (Level 0, 1, 2) – This article will give you an idea about Data Flow Diagram (Level 0, 1, 2) Examples In Software Engineering. This will …

Frequently Asked Questions

What are the levels of a Data Flow Diagram?

DFDs are hierarchical. Level 0 (Context Diagram) shows the entire system as a single process with external entities. Level 1 decomposes that single process into 5-8 major sub-processes with data stores between them. Level 2 further decomposes each Level 1 process into more detailed sub-processes. Most BSIT capstones submit Level 0, 1, and 2 — going deeper is over-scope.

What is the difference between DFD and Flowchart?

DFD shows DATA movement — what data goes where, where it is stored, who produces or consumes it. It has 4 symbols (entity, process, data store, data flow). Flowchart shows CONTROL flow — decision logic, sequence, loops. It has many symbols (decision diamond, process rectangle, terminator oval). For capstone Chapter 3, you typically need a DFD for the data model and a Flowchart (or Activity Diagram) for specific algorithms.

What is the difference between DFD and UML Activity Diagram?

DFD is data-centric — focus on what data is processed and stored, by which process. Activity Diagram is workflow-centric — focus on the sequence of actions, decision branches, parallel work. Many BSIT capstones include BOTH. Older curricula favor DFD (structured systems analysis); newer/OOP curricula favor Activity Diagrams. Check your school's documentation template.

What free tool should I use to draw a DFD?

draw.io / diagrams.net — free, web-based, has a built-in DFD shape library (Gane-Sarson and Yourdon-DeMarco notations). Lucidchart Free — prettier output. Visual Paradigm Community — full DFD support with leveled decomposition. PlantUML supports DFD via plugins. Start with draw.io for capstone — fastest iteration.

Gane-Sarson vs Yourdon-DeMarco notation — which to use?

Gane-Sarson uses rounded rectangles for processes (most common in Philippines BSIT curricula). Yourdon-DeMarco uses circles for processes (older, common in some Indian and US universities). Both are valid. Pick whichever your school's documentation template uses. The semantics are identical — only the shape choice differs.

Are these DFDs free for capstone and thesis use?

Yes. All DFDs are free to download, modify, and submit. No attribution required for academic use. Adapt the external entities, processes, and data stores to your specific system — that is expected good practice.

How often is this DFD collection updated?

New DFDs are added regularly as we encounter new capstone domains (Face Recognition systems, IoT, Cloud-based services). Existing DFDs are reviewed and updated periodically. Last refreshed: May 2026.
