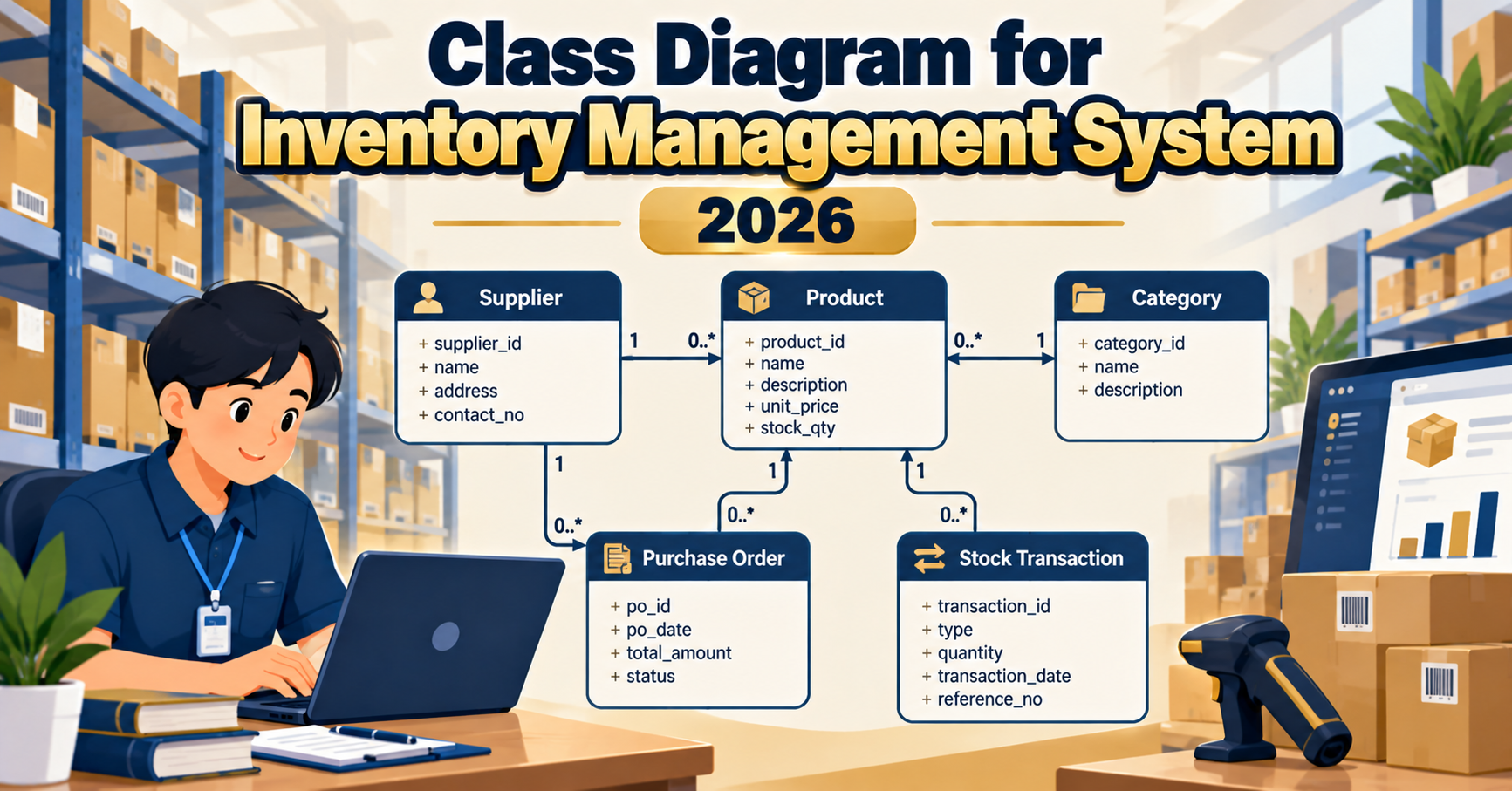

A class diagram for an inventory management system captures the static structure of the system: the classes, their attributes and methods, and the relationships between them. Where a DFD shows data flow and a sequence diagram shows time-ordered messages, the class diagram is the blueprint that maps directly to database tables and object-oriented code. Panels in 2026 expect at least 8-12 classes with complete attribute types, method signatures, and correct relationship notation. This guide walks through the diagram with defense-ready detail for BSIT capstone.
Quick 2026 verdict
A defensible inventory class diagram has 8-12 classes: Product, Category, Supplier, Warehouse, StockItem, StockMovement, PurchaseOrder, PurchaseOrderLine, User, Role, Audit. Each class needs attributes with typed declarations, methods with return types, and correct multiplicity on associations. Show composition where appropriate (PurchaseOrder composes PurchaseOrderLine, not aggregation). Add barcode + mobile scanner references to look current-year.
Class diagram notation reviewed
A UML 2.5 class diagram uses these elements:
- Class box: rectangle with three sections (name, attributes, methods)
- Visibility markers: + public, – private, # protected, ~ package
- Attribute format:
visibility name : Type = defaultValue - Method format:
visibility name(parameter : Type) : ReturnType - Association: solid line between classes with optional label and multiplicity (1, 0..*, 1..*, 0..1)
- Aggregation: hollow diamond, “has-a” relationship where the part can exist independently
- Composition: filled diamond, strong ownership where the part cannot exist without the whole
- Generalization: hollow triangle arrow, “is-a” inheritance
- Realization: hollow triangle with dashed line, class implements an interface
- Dependency: dashed arrow, one class uses another briefly
Core classes for an inventory system
Product ------------ - productId : String - sku : String - name : String - description : String - category : Category - unitPrice : Decimal - barcode : String - reorderThreshold : Integer ------------ + getStockLevel() : Integer + isLowStock() : Boolean + updatePrice(newPrice : Decimal) : Void
Category ------------ - categoryId : String - name : String - parentCategory : Category (nullable) ------------ + getSubcategories() : List<Category> + getAllProducts() : List<Product>
Warehouse ------------ - warehouseId : String - name : String - address : String - manager : User ------------ + getTotalStock() : Integer + getStockItems() : List<StockItem>
StockItem ------------ - stockItemId : String - product : Product - warehouse : Warehouse - quantityOnHand : Integer - lastUpdated : DateTime ------------ + increment(amount : Integer) : Void + decrement(amount : Integer) : Boolean + isBelowReorder() : Boolean
StockMovement ------------ - movementId : String - product : Product - warehouse : Warehouse - movementType : Enum(INBOUND, OUTBOUND, TRANSFER, ADJUSTMENT) - quantity : Integer - timestamp : DateTime - performedBy : User - referenceOrder : PurchaseOrder (nullable) ------------ + apply() : Void + reverse() : Void
Supplier ------------ - supplierId : String - name : String - contactPerson : String - email : String - phone : String - address : String - leadTimeDays : Integer ------------ + getProducts() : List<Product> + getPendingOrders() : List<PurchaseOrder>
PurchaseOrder ------------ - purchaseOrderId : String - supplier : Supplier - orderDate : Date - expectedDelivery : Date - status : Enum(DRAFT, SUBMITTED, RECEIVED, CANCELLED) - lines : List<PurchaseOrderLine> [composition, filled diamond] - totalAmount : Decimal - createdBy : User ------------ + addLine(product : Product, qty : Integer, unitCost : Decimal) : Void + submit() : Void + receive() : Void + computeTotal() : Decimal
PurchaseOrderLine ------------ - lineId : String - product : Product - quantity : Integer - unitCost : Decimal - receivedQuantity : Integer ------------ + computeLineTotal() : Decimal + receive(qty : Integer) : Void
User ------------ - userId : String - username : String - fullName : String - email : String - passwordHash : String - role : Role ------------ + authenticate(password : String) : Boolean + hasPermission(action : String) : Boolean Role ------------ - roleId : String - name : String // "Admin", "Manager", "StaffScanner" - permissions : List<String>
Relationships with correct multiplicities
- Product 0..* — 1 Category (many products belong to one category; category can have zero-to-many products)
- Category 0..1 — 0..* Category (parent-subcategory, self-association)
- Warehouse 1 — 0..* StockItem (a warehouse holds zero-to-many stock items)
- Product 1 — 0..* StockItem (a product has zero-to-many stock item records, one per warehouse)
- Product 1 — 0..* StockMovement (many movements per product)
- Warehouse 1 — 0..* StockMovement
- Supplier 1 — 0..* PurchaseOrder
- PurchaseOrder 1 — 1..* PurchaseOrderLine (COMPOSITION, filled diamond). Critical: composition means lines cannot exist without their parent order
- PurchaseOrderLine 0..* — 1 Product
- User 1 — 0..* PurchaseOrder (creator)
- User 1 — 0..* StockMovement (performedBy)
- User 0..* — 1 Role
2026 features every inventory class diagram should include
- Barcode and QR support. Add barcode attribute to Product. Add BarcodeScanner interface or a ScannerClient class that returns a Product from a scan.
- Multi-warehouse. Even for capstone, panels expect Warehouse as a first-class entity. Single-warehouse designs limit real-world applicability.
- Audit trail. Add an Audit class with references to User, timestamp, action, and affected entity. All destructive operations create Audit entries.
- Low-stock notification. StockItem has isBelowReorder() method. When true, the system emits a NotificationService call. Show Notification as a separate class if you have space.
- Batch and expiry tracking (optional). Add BatchLot class with batchId, expiryDate, and quantity if your inventory is for pharmacy, food, or perishable items.
- Mobile scanner user. Role class has a “StaffScanner” role type. Panel will ask about mobile access; the class diagram should reflect it.
- Real-time sync. Add a syncStatus attribute to StockMovement (LOCAL, PENDING_SYNC, SYNCED) if your project supports offline scanning.
Common panel deductions on inventory class diagrams
- Missing multiplicity on associations (reviewers explicitly check for 1, 0..*, 1..*, 0..1 labels)
- PurchaseOrder-to-PurchaseOrderLine shown as aggregation (hollow diamond) instead of composition (filled diamond)
- All attributes shown without types (name should be name : String, not just name)
- Methods shown without return types or parameter types
- Warehouse or multi-location model missing (single-tenant inventory diagrams look 5 years old)
- No StockMovement class (system cannot audit how stock changed over time)
- User and Role merged into one class (violates single-responsibility, harder to extend)
- Product self-associates to a “related products” but no clear multiplicity or role name
- Barcode attribute absent even though the project uses barcode scanning
Aggregation vs Composition (the classic panel question)
| Aspect | Aggregation | Composition |
|---|---|---|
| Symbol | Hollow diamond | Filled diamond |
| Part lifecycle | Can exist without whole | Cannot exist without whole |
| Inventory example | Warehouse has StockItem (StockItem can be moved to another warehouse) | PurchaseOrder has PurchaseOrderLine (line cannot exist without its order) |
| Cascade delete? | No | Yes |
Frequently Asked Questions
How many classes should an inventory class diagram have?
8-12 for a complete BSIT capstone. Fewer than 8 looks underscoped; more than 15 gets cluttered. Core 10: Product, Category, Warehouse, StockItem, StockMovement, Supplier, PurchaseOrder, PurchaseOrderLine, User, Role.
Do I need to show method signatures with parameter types?
Yes, always. Reviewers in 2026 expect + decrement(amount : Integer) : Boolean, not just + decrement(). Language-agnostic types are fine (Integer, String, Decimal, DateTime, List<T>). Java, C#, or TypeScript panels all validate types.
When should I use inheritance in an inventory system?
Rarely. Product subclassed into ConsumableProduct and DurableProduct is possible if the domain has strong distinctions (batch tracking, warranty). Otherwise a single Product class with a type attribute is simpler. Reviewers appreciate simplicity when inheritance is not truly needed.
Should I include a separate Notification class?
Yes if your system sends low-stock alerts, order-received confirmations, or reorder reminders. Notification with type, recipient, message, and timestamp attributes is common. Attach it to StockItem or User via association.
How do I show the barcode scanner as part of the class diagram?
Add a ScannerClient class or interface with method scanCode(code : String) : Product. It has an association to Product for the lookup. Or model it as an external actor in a use-case diagram and skip in the class diagram. Both are defensible.
Does the class diagram directly map to database tables?
Mostly yes for object-relational mapping (ORM). Each class becomes a table, attributes become columns. Compositions typically map to foreign keys with cascade delete. Panels ask this explicitly; be ready to walk from class diagram to the ER diagram to prove consistency.
