How to Make Bouncing Ball Game in Python with Source Code

Simple Bouncing Ball Program in Python with Source Code

by

This Simple Bouncing Ball Program in Python is developed using Python Programming Language.

The Bouncing Ball Game in Python is designed using Tkinter and a graphical user interface(GUI) and it is a desktop application.

A Bouncing Ball Game Code in Python uses Canvas for drawing objects and random modules in Python.

A canvas is a rectangular area intended for drawing pictures or other complex layouts. We can place graphics, text, widgets, or frames on Canvas.

Bouncing Ball Code in Python – Project Information

Project Name:Simple Bouncing Ball Program in Python
Language/s Used:Python (GUI) Based
Python version (Recommended):2.x or 3.x
Database:None
Type:Python App
Developer:IT SOURCECODE
Updates:0
How To Create a Bouncing Ball in Python

The Bouncing Ball Code in Python could be very simple to control for the users.

There is one bar at the lowest of the game window which may be moved left or right key for the proper usage of the buttons which are in the game window.

The goal of the Bouncing Ball Game is to hit all targets as many times as you can to earn the highest score. Every time the ball hits the Target you earn 1 point, and if it hits 2 targets you earn 2 points, respectively.

If the player fails to catch the ball on the bar then it will appear the game over on the game window.

Anyway, if you want to level up your knowledge in programming especially games in Python, try this new article I’ve made for you Code For Game in Python: Python Game Projects With Source Code.

Before you start on How to Make Bouncing Ball Game in Python, make sure that you have PyCharm IDE installed on your computer.

By the way, if you are new to Python programming and don’t know what Python IDE to use, I have here a list of the Best Python IDE for Windows, Linux, and Mac OS that will suit you.

I also have here How to Download and Install the Latest Version of Python on Windows.

Steps on How to Create a Bouncing Ball in Python

Time needed: 5 minutes

These are the steps on How To Create a Bouncing Ball in Python with Source Code

  • Step 1: Create a project name

    First, when you finished installing the Pycharm IDE on your computer, open it and then create a “project name.” After creating a project name click the “create” button.

  • Step 2: Create a python file.

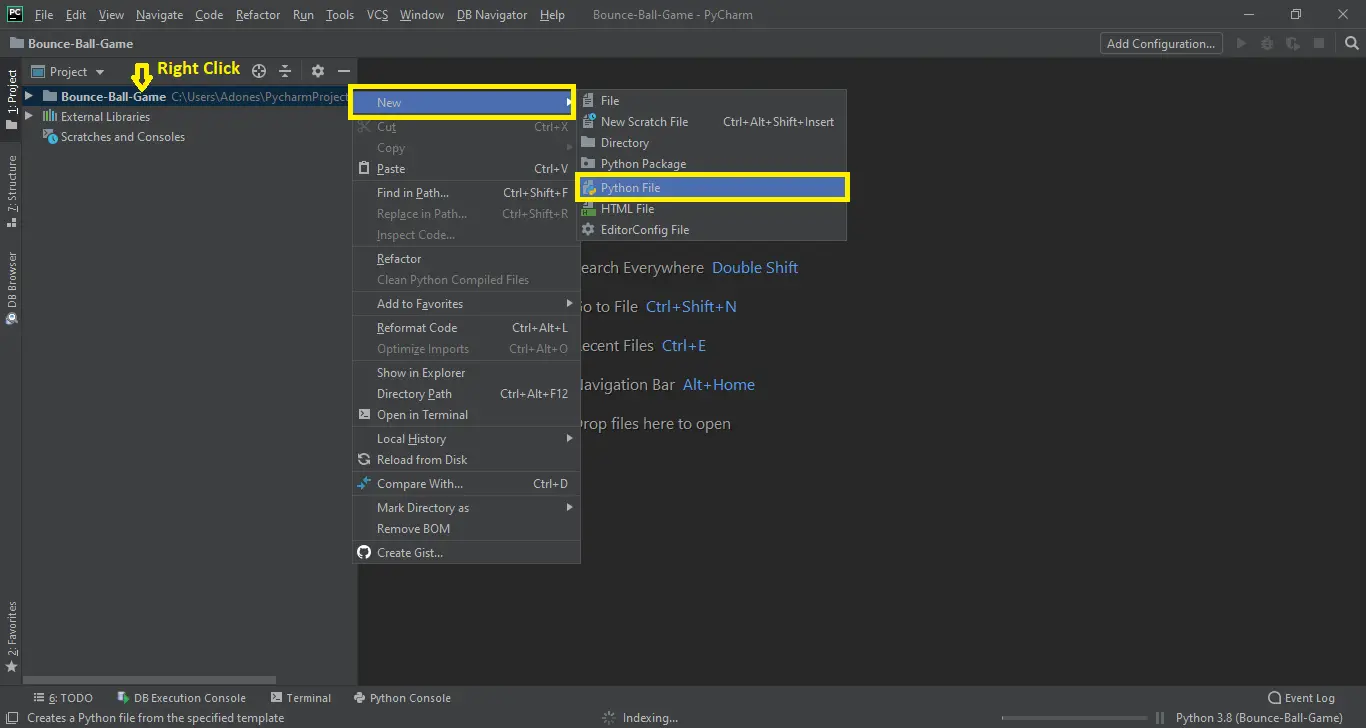

    Second, after creating a project name, “right click” your project name and then click “new” After that click the “python file“.Creating Python file name in Bounce Ball Game

  • Step 3: Name your Python file.

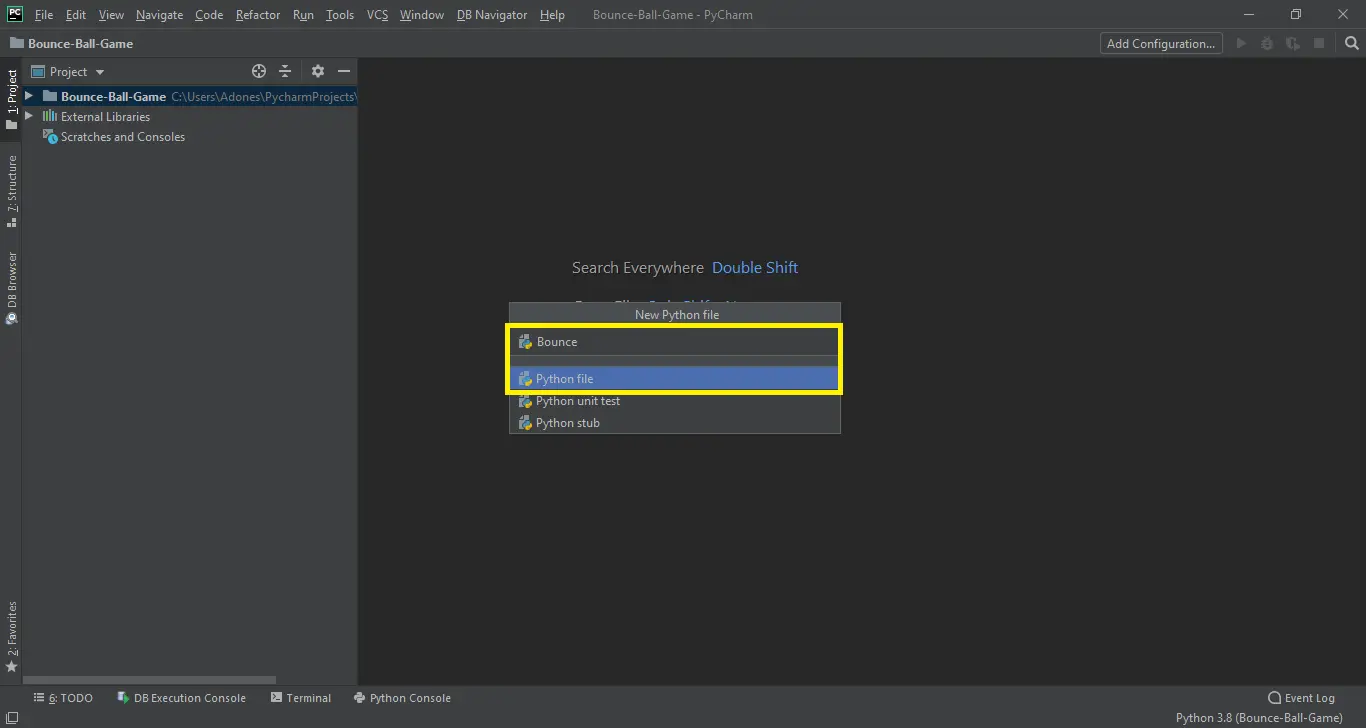

    Third, after creating a Python file, Name your Python file after that click “enter“.Naming Python file name in Bounce Ball Game

  • Step 4: The actual code

    This is the actual coding on How To Create a Bouncing Ball in Python, and you are free to copy this code and download the full source code given below.

Code Explanations

1. Importing Tkinter Module

Code:

from tkinter import *

Explanations:

Tkinter is the standard GUI library for Python. Python when combined with Tkinter provides a fast and easy way to create GUI applications.

2. Importing Random Module

Code:

import random

Explanation:

Among these is the random() function, which generates random numbers between 0 and 1.

3. Designing the Main Window

Code:

root = Tk()
root.title("Bounce Ball Game")
root.geometry("500x570")
root.resizable(0, 0)
root.wm_attributes("-topmost", 1)
canvas = Canvas(root, width=500, height=500, bd=0, highlightthickness=0, highlightbackground="Red", bg="Black")
canvas.pack(padx=10, pady=10)
score = Label(height=50, width=80, text="Score: 00", font="Calibri 14 italic")
score.pack(side="left")
root.update()

Explanation;

In the code above, which is first of all you have to design the main screen window.

4. Module for Starting a Game

Code:

def start_game(event):
global playing
if playing is False:
playing = True
score.configure(text="Score: 00")
canvas.delete("all")
BALL_COLOR = ["blue", "green", "violet"]
STONE_COLOR = ["green", "dark blue", "red", "pink", "violet", "yellow",
"orange", "gray", "brown", "white", "blue", "yellow green",
"navajo white", "dark gray", "violet red", "powder blue", "blue violet"]
random.shuffle(BALL_COLOR)
pole = Pole(canvas, "yellow")
stones = []
for i in range(0, 5):
b = []
for j in range(0, 19):
random.shuffle(STONE_COLOR)
tmp = Stone(canvas, STONE_COLOR[0])
b.append(tmp)
stones.append(b)

for i in range(0, 5):
for j in range(0, 19):
canvas.move(stones[i][j].id, 25 * j, 25 * i)

ball = Ball(canvas, BALL_COLOR[0], pole, stones, score)
root.update_idletasks()
root.update()

time.sleep(1)
while 1:
if pole.pauseSeconds != 1:
try:
canvas.delete(m)
del m
except:
pass
if not ball.bottom_hit:
ball.draw()
pole.draw()
root.update_idletasks()
root.update()
time.sleep(0.01)
if ball.hit == 95:
canvas.create_text(250, 250, text="YOU WON !!", fill="yellow", font="Calibri 24 ")
root.update_idletasks()
root.update()
playing = False
break
else:
canvas.create_text(250, 250, text="GAME OVER!!", fill="red", font="Calibri 24 ")
root.update_idletasks()
root.update()
playing = False
break
else:
try:
if m == None: pass
except:
m = canvas.create_text(250, 250, text="PAUSE!!", fill="green", font="Calibri 24 ")
root.update_idletasks()
root.update()

Explanation:

In the code above, which is for starting a game function use and design of a game. If you hit all the balls it will appear YOU WIN, and if you lose it will appear GAME OVER.

5. Module for the Class Function Use

Code:

class Ball:
def __init__(self, cvs, clr, pole, stones, scre):
self.stones = stones
self.cvs = cvs
self.pole = pole
self.scre = scre
self.bottom_hit = False
self.hit = 0
self.id = canvas.create_oval(10, 10, 25, 25, fill=clr, width=1)
self.cvs.move(self.id, 230, 461)
start = [4, 3.8, 3.6, 3.4, 3.2, 3, 2.8, 2.6]
random.shuffle(start)

self.a = start[0]
self.b = -start[0]
self.cvs.move(self.id, self.a, self.b)
self.cvs_height = canvas.winfo_height()
self.cvs_width = canvas.winfo_width()

Explanation:

In the code above, which is for the class function used in the system.

6. Module for Left and Right Key

Code:

def turn_left(self, event):
self.a = -3.5

def turn_right(self, event):
self.a = 3.5

def pause(self, event):
self.pauseSeconds += 1
if self.pauseSeconds == 2:
self.pauseSeconds = 0

Explanation:

In the code above, which is for the function of left and right key use in the game window.

First Output

first-output-of-how-to-make-bouncing-ball-game-in-python
first-output-of-how-to-make-bouncing-ball-game-in-python

Second Output

2nd-output-of-how-to-make-bouncing-ball-game-in-python
2nd-output-of-how-to-make-bouncing-ball-game-in-python

How to Run the Simple Bouncing Ball Program in Python with Source Code?

To run this project, you must have installed a Pycharm on your PC (for Windows). This Simple Bouncing Ball Program in Python is for educational purposes only!

After downloading the project you must follow the steps below:

Step 1: Unzip the file or Extract the file.

Step 2: Double-click the Bounce ball.

Step 3: The project is ready to run.

Downloadable Source Code

Download Now

I have here the list of Best Python Projects with Source code free to download for free, I hope this can help you a lot.

Summary

This is an easy game created for beginners. Bouncing Ball Game in Python is free to download the open source code and it is used for educational purposes only.

Inquiries

If you have any questions or suggestions about the Simple Bouncing Ball Program in Python with Source Code, please feel free to leave a comment below.
