ER Diagram for Hospital Management System
This Hospital Management System Database Design has an ER Diagram for Hospital Management System project.
This material includes database schema, Data dictionaries, Database Tables and ERD.
The Hospital management system database design is a database design use for managing hospital functions and events. It enables the admin to register a patient for the hospital, stores their disease details into the database. Any of the staff members, doctor & admin is able to add, view, edit, update or delete data.
The purpose of the Hospital Management System database Design is to make a secure and easy way of storing information of the patient, doctors, inpatient, outpatient, Rooms, and Bill payment.
There are seven(7) common features of Hospital Management System Database Design such as Managing Patients, Doctors, laboratory, Inpatient, Outpatient, Rooms, and Hospital Bills information.
ER Diagram for Hospital Management System
ER Diagram Hospital Management System Database Design Project.
- Manage Patients
This table of ER Diagram Hospital Management System will be used for storing and managing the patient information.
- Manage Doctor
This table will be used for storing and managing the Doctor information and login account.
- Manage Laboratory
This table will be used for storing and managing the Laboratory transaction.
- Manage Inpatient
This table will be used for storing and managing the inpatient information and diagnosis.
- Manage Outpatient
This table will be used for storing and managing the inpatient information and diagnosis.
- Manage Room
This table will be used for storing and managing the room information and assigning of patient in every room.
- Manage Bills
The billing table will be used for managing the statement of accounts per patient and for the collection of bills.
ER Diagram for Hospital Management System with Relationship
This section will show you the ER Diagram for Hospital Management System Project.
In the image below you see the actual relationship of all entity.

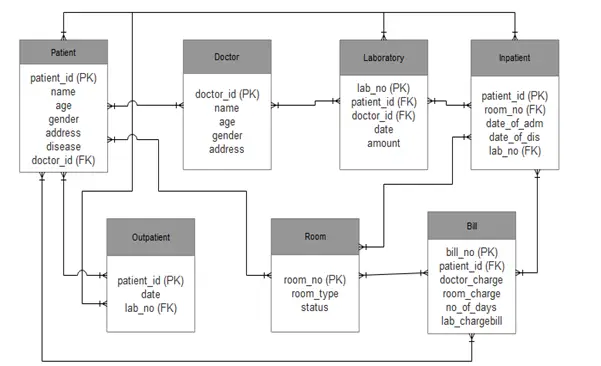

Diagram of Hospital Management System
Figure 8: Proposed SCA Hospital Management System Entity Relationship Diagram
Based on figure 8, the proposed er diagram for hospital management system with relationship shows the entity of the proposed SCA Hospital Management system database, which is presented by tables; the tables are made to meet the required specification of the system and provide much more specific details of each entity within the system.
Table 1: tblPatient
| Field Name | Description | Type | Length |
| patient_id (PK) | Patient ID | varchar | 10 |
| name | Patient Name | varchar | 50 |
| age | Patient Age | int | 3 |
| gender | Patient Gender | varchar | 50 |
| address | Patient Address | varchar | 50 |
| disease | Patient Disease | varchar | 50 |
| doctor_id (FK) | Doctor ID | varchar | 20 |
Table 2: tblDoctor
| Field Name | Description | Type | Length |
| doctor_id (PK) | Doctor ID | varchar | 10 |
| name | Doctor Name | varchar | 30 |
| age | Doctor Age | int | 3 |
| gender | Doctor gender | varchar | 50 |
| address | Doctor Address | varchar | 50 |
Table 3: tblLab
| Field Name | Description | Type | Length |
| lab_no (PK) | Laboratory Number | varchar | 10 |
| patient_id (FK) | Patient ID | varchar | 10 |
| doctor_id (FK) | Doctor ID | varchar | 10 |
| date | Laboratory Date | Date/Time | 10 |
| amount | Amount of Lab | int | 20 |
Table 4: tblInpatient
| Field Name | Description | Type | Length |
| patient_id (PK) | Patient ID | varchar | 10 |
| room_no (FK) | Room Number | varchar | 50 |
| date_of_adm | Date of Admission | Date/Time | 10 |
| date_of_dis | Date of Discharge | Date/Time | 10 |
| lab_no (FK) | Laboratory Number | varchar | 10 |
Table 5: tblOutpatient
| Field Name | Description | Type | Length |
| patient_id (PK) | Patient ID | varchar | 10 |
| date | Date of Outpatient | varchar | 10 |
| lab_no (FK) | Laboratory Number | varchar | 20 |
Table 6: tblRoom
| Field Name | Description | Type | Length |
| room_no (PK) | Room Number | varchar | 50 |
| room_type | Room Type | varchar | 50 |
| status | Status Of Room | varchar | 20 |
Table 7: tblBill
| Field Name | Description | Type | Length |
| bill_no (PK) | Patient ID | int | 11 |
| patient_id (FK) | Patient Name | varchar | 10 |
| doctor_charge | Patient Age | int | 10 |
| room_charge | Patient Gender | int | 10 |
| no_of_days | Patient Address | int | 10 |
| lab_charge | Patient Disease | int | 10 |
| bill | Doctor ID | int | 10 |
If you have any question or suggestion about ER diagram hospital management system project, please feel free to contact us or simply leave a comment below.
Conclusion
This Hospital Management System Database Design is a requirement in the DBMS mini Project.
If you want to develop your own Hospital Management System, you can upgrade this database design to suit your requirements.
