In this article of Order Management System Thesis Chapter 3 | Methodology, the method and software program development tool used to expand the
Order Management System might be discussed. The method used to expand
the software might be defined in details collectively with figures and flow charts.

Here’s the Outline of Order Management System Thesis Chapter 3 | Methodology

  1. Methodology

  2. System Development Life Cycle(SDLC)

  3. Cordora Trading and Services System Use Case Model

  4. Activity Diagram

  5. Context Diagram

  6. Dataflow Diagram

  7. Entity Relationship Diagram

  8. Data Dictionaries

  9. Screen Design

  10. Archetectural Diagram

  11. Hardware and Software Requirements

  12. References

Methodology

This chapter presents the system design of the proponent’s system

Order Management System Thesis Chapter 3 | Methodology : System Development Life Cycle(SDLC)

The Software Development Life Cycle (SDLC) is a framework defining tasks performed at each step in the software development process. It is a structure followed by a development team with in the software organization.

It consists of a detailed plan describing how to develop, maintain and replace the specific software. The life cycle defines the methodology for improving the quality of the software and over all development process. The proponents will use the Rational Unified Process Methodology as a guide of processing the system flow.

Order Management System Thesis Chapter 3 | Methodology : Extreme Programming Methodology

Figure 1: Extreme Programming Methodology

Figure 1: Shows the Extreme Programming Diagram used by the proponents as their model for the system. It shows how the research and process is being implemented from the start of the process until it has been finished.

Extreme programming (XP) is a software development methodology which is intended to improve software quality and responsiveness to changing customer requirements. As a type of agile software development, it advocates frequent “releases” in short development cycles, which is intended to improve productivity and introduce checkpoints at which new customer requirements can be adopted.

Other elements of extreme programming include: programming in pairs or doing extensive code review, unit testing of all code, avoiding programming of features until they are actually needed, a flat management structure, code simplicity and clarity, expecting changes in the customer’s requirements as time passes and the problem is better understood, and frequent communication with the customer and among programmers.

Release Plan

In this phase, the proponents meet and creates a release plan, which lays out the overall project of CORDORA TRADING AND SERVICES MANAGEMENT SYSTEM. Then used to create iteration plans for each individual iteration.

Iteration Plan

The proponents will meet at the beginning of each iteration to produce that iteration’s plan of programming tasks. Each iteration is 1 to 3 weeks long. User stories are chosen for this iteration by the customer from the release plan in order of the most valuable to the customer first.

Acceptance Test

The proponents meet with the customer, and the customer specifies scenarios to test when a user story has been correctly implemented. A story can have one or many acceptance tests, whatever it takes to ensure the functionality works.

Stand Up Meeting

The proponents meet, most of proponents do not contribute, but attend just to hear the outcome of every works, and what problems are causing delays.

Unit Test

The Proponents first create or download a unit test framework to be able to create automated unit tests suites. Second Proponents should test all classes in the system. Trivial getter and setter methods are usually omitted. Proponents will also create their test first, before the code.

Pair Programming

The proponents select two skilled people in programming, this two programmers work side-by-side at one computer, continuously collaborating on the same design, algorithm, code, or test.

Order Management System Thesis Chapter 3 | Methodology : Cordora Trading and Services System Use Case Model

Describing the process of how the admin manage the reservation of the customer and equipment that needed for the service. Admin will track the salary of employees based on their service done. To ensure that the salary of employees pay in proper amount.

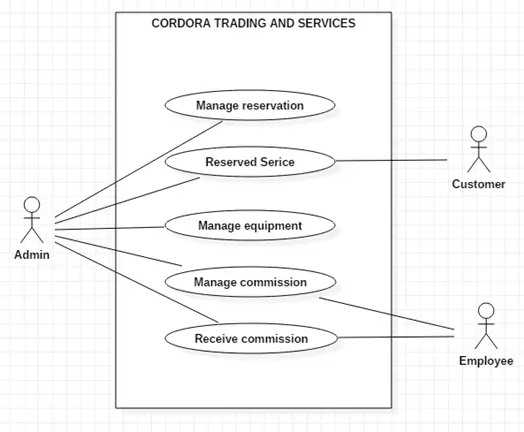

Figure 2: Cordora Trading and Services System Use Case Diagram

Manage Reservation

This figure show how the admin manage the reservation

Figure 3: Manage Reservation use case diagram

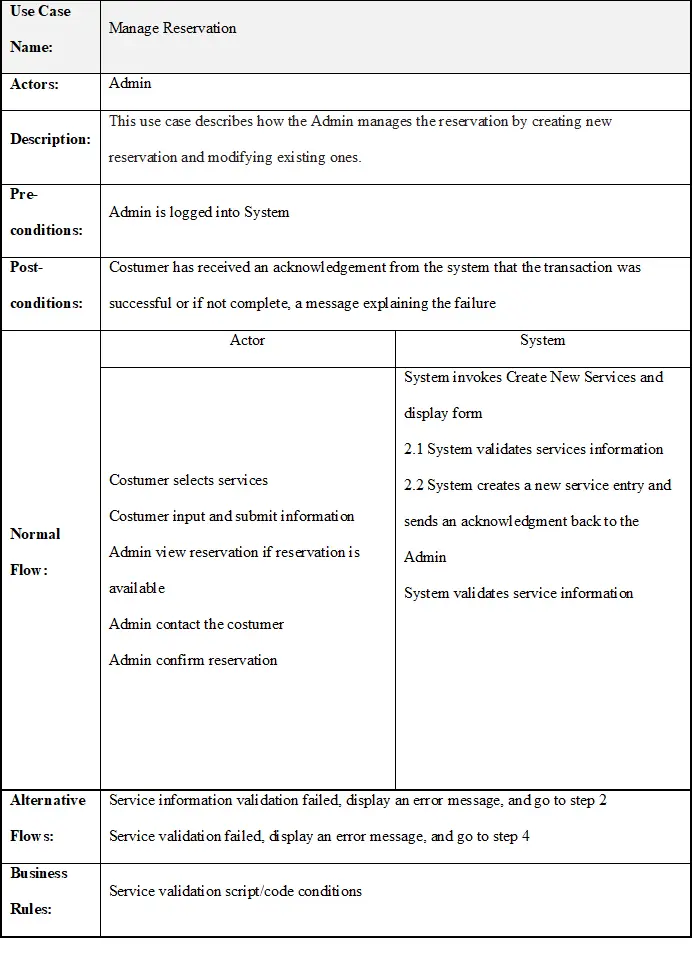

Table 2. Manage Reservation Use Case Description

Order Management System Thesis Chapter 3 | Methodology : Reserve Service

This figure show how the customer reserve the service

Figure 4: Reserved Service Use Case Diagram

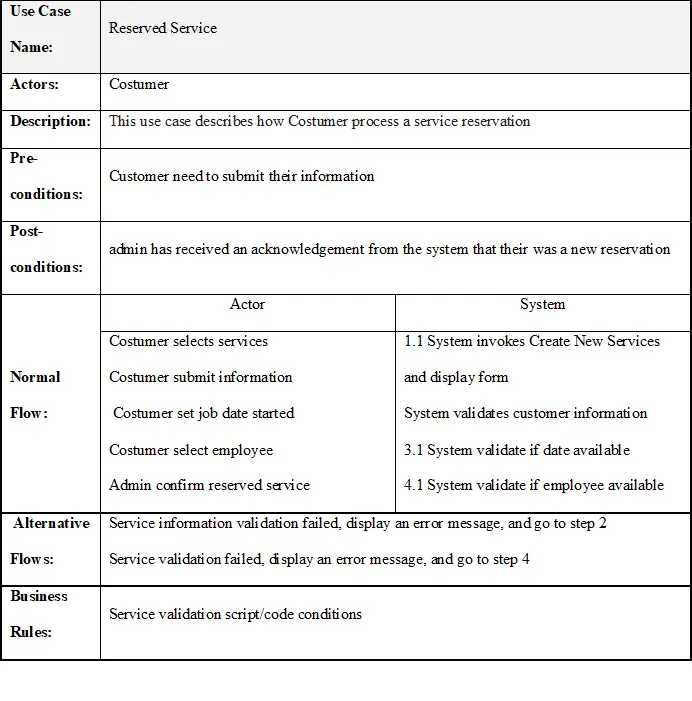

Table 3. Manage Reserved Service Use Case Description

Manage Equipment

This figure show how the admin manage the Equipment

Figure 5: Manage Equipment Use Case Diagram

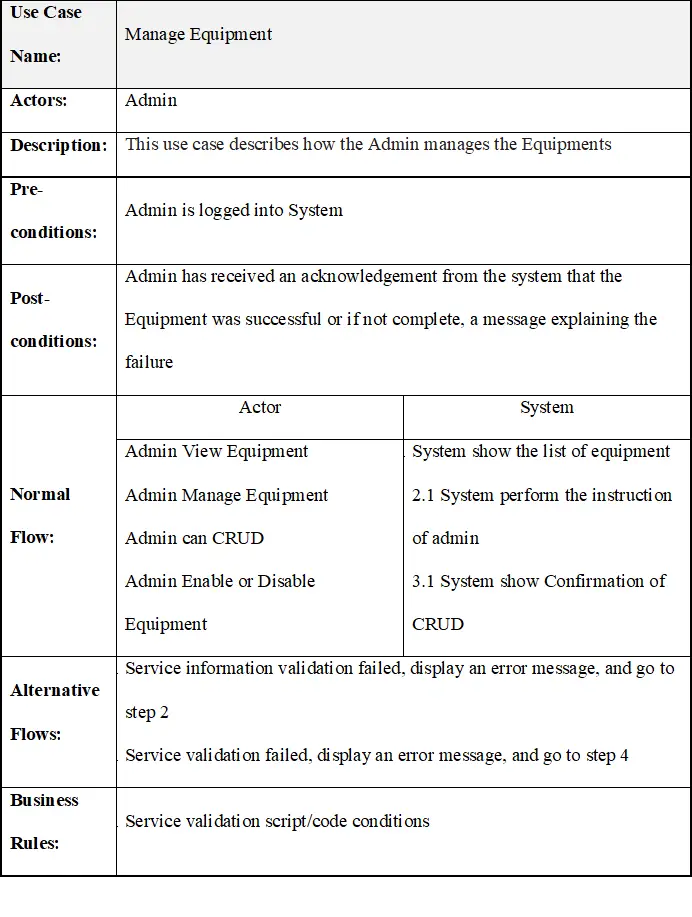

Table 4. Manage Equipment Use Case Description

Order Management System Thesis Chapter 3 | Methodology : Manage Commission

This figure show how the admin manage the commission of employee

Figure 6: Manage Commission Use Case Diagram

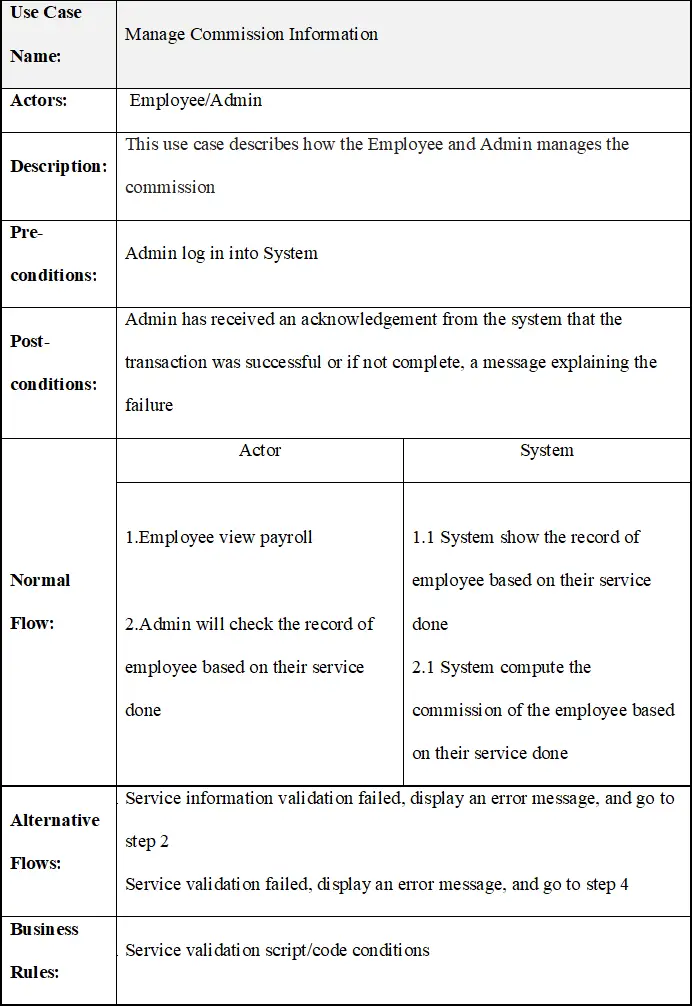

Table 5. Manage Commission Use Case Description

Order Management System Thesis Chapter 3 | Methodology : Activity Diagram

Reservation

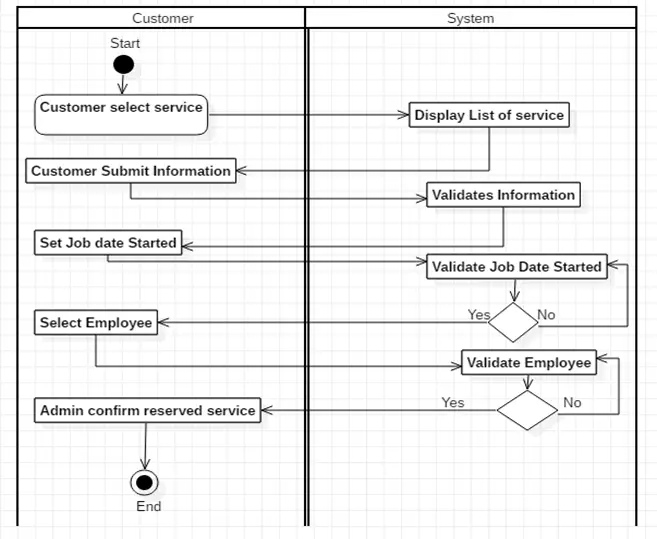

Figure 7: Reservation Activity Diagram

Order Management System Thesis Chapter 3 | Methodology : Employee Deployment

Figure 8: Employee Deployment Activity Diagram

Order Management System Thesis Chapter 3 | Methodology : Context Diagram

The context diagram of Cordora Trading and Services Management System represented below shows the flow of the system throughout the system process. It show what information could be input, where the data goes and how it is stored.

Figure 9: Context Diagram of Cordora Trading and Services Management System

Order Management System Thesis Chapter 3 | Methodology : Dataflow Diagram

Data flow diagram of proposed solution all the concept and flows of each entity that shows all the process in proposed identity which the process begins.

Figure 10: Data Flow Diagram of Cordora Trading and Services Management System  Level 0
Figure 11: Data Flow Diagram of Customer Level 1
Figure 12: Data Flow Diagram of Employee Level 1
Figure 13: Data Flow Diagram of Employee Level 1
Figure 14: Data Flow Diagram of Employee Level 1

Order Management System Thesis Chapter 3 | Methodology : Entity Relationship Diagram

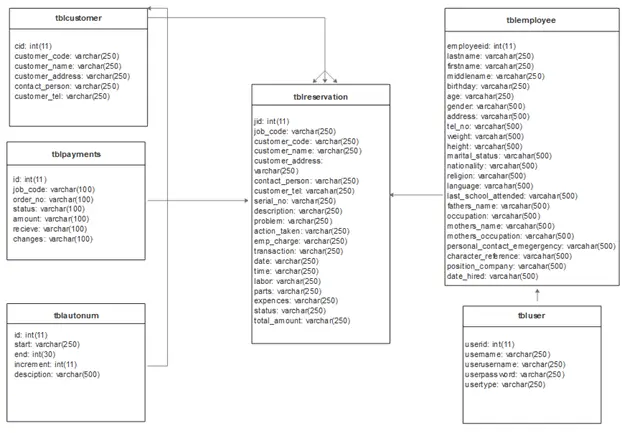

Figure 15: Entity Relationship Diagram of Cordora Trading And Services

Order Management System Thesis Chapter 3 | Methodology : Data Dictionaries

These tables below provide the entire database tables details such as Field Name, Descriptions, data types, character lengths.

Table 6: TABLE AUTONUM

Field Name Description Type Length
ID(PK) id Int 11
START start Varchar 250
END end Int 11
INCREMENT increment Int 11
DESCRIPTION description Varchar 250

This table show the attributes of entity of autonum

Table 7: TABLE CATEGORY

Field Name Description Type Length
CAT_ID(PK) Cat ID Int 11
CAT_NAME Cat Name Varchar 50

This table show the attributes of entity of category

Table 8: TABLE CUSTOMER

Field Name Description Type Length
CID(PK) Cid Int 11
CUSTOMER_CODE Customer Code Varchar 2 50
CUSTOMER_NAME Customer Name Varchar 250
CUSTOMER_ADDRESS Customer Address Varchar 250
CONTACT_PERSON Contact Person Varchar 250
CUSTOMER_TEL Customer Tel Varchar 250

This table show the attributes of entity of customer

Table 9: TABLE EMPLOYEE

Field Name Description Type Length
EMP_ID (PK) Employee Id Int 11
L_NAME Last Name Varchar 250
F_NAME First Name Varchar 250
M_NAME Middle Name Varchar 250
BDAY Birthday Varchar 250
AGE Age Varchar 500
GENDER Gender Varchar 500
CONTACT Contact No.  Varchar 500
POSITION Position Varchar 500
DATE_HIRED Date Hired Varchar 500

This table show the attributes of entity of employee

Table 10: TABLE EQUIPMENT

Field Name Description Type Length
ID (PK) Id Int 11
CAT_ID (FK) Cat Id Varchar 250
EQUIP_NAME Equipment Name Varchar 250
EQUIP_QTY Equipment Qty Int 11
EQUIP_PRICE Equipment Price Int 11
EQUIP_USE Equipment Use Varchar 250

This table show the attributes of entity of equipment

Table 11: TABLE PAYMENTS

Field Name Description Type Length
ID (PK) Id Int 11
JOB_CODE Job Code Varchar 100
ORDER_NO Order Name Varchar 100
STATUS Status Varchar 100
AMOUNT Amount Varchar 100
RECEIVE Receive Varchar 100
CHANGES Changes Varchar 100

This table show the attributes of entity of payments

Table 12: TABLE USER

Field Name Description Type Length
USERID(PK) User Id Int 11
USERNAME User Name Varchar 250
USERUSERNAME User User Name Varchar 250
USERPASSWORD User Password Varchar 250
USERTYPE User Type Varchar 250

This table show the attributes of entity of user

Table 13: TABLE RESERVATION

Field Name Description Type Length
JID (PK) Id Int 11
JOB_CODE Job Code Varchar 250
CUSTOMER_CODE Customer Code Varchar 250
CUSTOMER_NAME Customer Name Varchar 250
CUSTOMER_ADDRESS Customer Address Varchar 250
CONTACT_PERSON Contact Person Varchar 250
CUSTOMER_TEL Customer Tel Varchar 250
QTY Qty Varchar 250
SERIAL_NO Serial No Varchar 250
DESCRIPTION Description Varchar 250
PROBLEM Problem Varchar 250
ACTION_TAKEN Action Taken Varchar 250
EMP_CHARGE Employee Incharge Varchar 250
TRANSACTION Transacation Varchar 250
DATE Date Varchar 250
TIME Time Varchar 250
LABOR Labor Varchar 250
PARTS Parts Varchar 250
EXPENCES Expences Varchar 250
STATUS Status Varchar 250
TOTAL_AMOUNT Total Amount Varchar 250

This table show the attributes of entity of reservation

Table 14: TABLE COMMISSION

Field Name Description Type Length
ID (PK) Id Int 11
EMPLOYEEID Employee Id Varchar 250
CUSTOMER_CODE Customer Code Varchar 250
JOB_CODE Job Code Varchar 30
C_COMMISSION Commission Varchar 30
C_DATE  Date Varchar 30
C_TIME Time Varchar 30

This table show the attributes of entity of commission

Order Management System Thesis Chapter 3 | Methodology : Archetectural Diagram

Figure 23: Architectural Diagram

Order Management System Thesis Chapter 3 | Methodology : Hardware and Software Requirements

In the development of the system, the developer uses both software and hardware are recommended.

The following Hardware and Software specifications should be considered for the development of the system project.

Order Management System Thesis Chapter 3 | Methodology : Development:

Computer Unit Specification

                                                Processor: intel CORE i3 7th Gen

                                                RAM: 4GB

                                                ROM: 1TB

                                                Others: Printer and USB cord

Software Development Specification

                                                VB.Net 2008

                                                MYSOL

References

Reservation System of Boracay Grand Vista Resort and Spa (2011). Retrieved from google:

www.academia.edu/23715001/CHAPTER_2_REVIEW_OF_RELATED_LITERATURE_AND_STUDIES_Online_Billing_and_Reservation_System (December 11, 2019 11:27)

Online Sales and Inventory System of ACME Tacloban Hardware 2013). Retrieved from google:  capstoneguide.com/lesson/review-of-related-literature-sales-inventory-system-barcode (December 11, 2019 11:31)

Payroll Management of Krizalen Enterprises (2014). Retrieved from google: www.slideshare.net/SavioAberneithie/payroll-management-system-complete-report

(December 11, 2019 11:35)

Job Order Cost System (2014). Retrieved from google:

www.cliffsnotes.com/study-guides/accounting/accounting-principles-ii/traditional-cost-systems/job-order-cost-system (December 11, 2019 11:40)

Sales & Inventory Monitoring Systems of A&A International Industries Inc (2013). Retrieved from google: www.academia.edu/28938437/CHAPTER_2_Review_of_Related_Literature_and_Studies (December 11, 2019 11:43)

Payroll Management of ABN Amro Holding N.V (2012). Retrieved from google:

www.scribd.com/doc/250214407/chapter2-payroll-system (December 11, 2019 11:49)

Online Billing and Reservation System for Royal Palm Paradise Resort (2013) Retrieved from google: www.academia.edu/23715001/CHAPTER_2_REVIEW_OF_RELATED_LITERATURE_AND_STUDIES_Online_Billing_and_Reservation_System?auto=download

(December 11, 2019 11:55)

Computerized Sales and Inventory System for Anthony’s General Merchandise and Construction Supply(2013). Retrieved from google:   www.bartleby.com/essay/Computerized-Sales-and-Inventory-System-for-Anthonys-FK9V8CE36ZYS (December 11, 2019 11:58)

Payroll System & Taxation of Accord Networks Ltd(2014). Retrieved from google:

www.coursehero.com/file/29324569/Chapter-IIdocx (December 11, 2019 12:03)

Online Billing and Reservation System of Bug Hotel. Retrieved from google:

www.academia.edu/23715001/CHAPTER_2_REVIEW_OF_RELATED_LITERATURE_AND_STUDIES_Online_Billing_and_Reservation_System (December 11, 2019 12:07)

CISS (Computer Inventory System Specialists Ltd.) Purchase Order Management (2013). Retrieved from google: www.academia.edu/28938437/CHAPTER_2_Review_of_Related_Literature_and_Studies (December 11, 2019 12:11)

Payroll Management System of Trendstatic Corporation (2010). Retrieved from google:  www.academia.edu/31818773/WEB_BASED_PAYROLL_SYSTEM_LAS_PINAS_CITY_HALL_In_Partial_Fulfillment_Of_the_Requirements_for_the_Degree_Bachelor_of_Science_in_Information_Technology_Members (December 11, 2019 12:16)
